TwoTrees TTS-20 Pro 20w Laser Engraver

Original price £445.00 - Original price £445.00
Original price
£445.00
£445.00 - £445.00
Current price £445.00

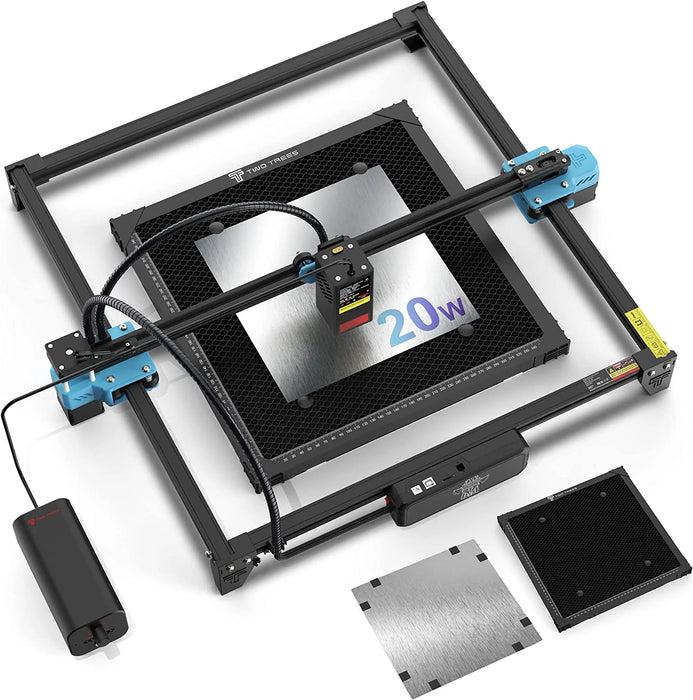

Introducing the TwoTrees TTS-20 Pro, a cutting-edge 20W laser engraver and cutter launched in 2023, designed for precision and ease of use. This model stands out with its rapid engraving speed of up to 500mm/s and a generous 418mm x 418mm working area, setting new standards in the laser engraving industry.

Key features of the TTS-20 Pro include a new generation laser module that is 40% lighter than previous models, thanks to a COS chip upgrade for more efficient thermal management and improved heat dissipation. This machine is delivered 98% pre-assembled, significantly reducing setup time to just minutes and allowing you to start your projects almost immediately upon unboxing.

Safety is paramount with the TTS-20 Pro; it comes equipped with a laser protective cover that filters out 97% of UV light, safeguarding your eyes during operation. Additionally, a limit switch ensures the laser operates safely and correctly, enhancing the reliability of your work.

Enhancements like the included air pumps and honeycomb panels elevate your engraving and cutting tasks, providing finer control and cleaner results. This model is compatible with a variety of materials, from wood and leather to plastic and alumina, and supports comprehensive software options like LASERGRBL and Lightburn, accommodating a wide range of project requirements.

Whether you are a hobbyist looking to delve into new creative territories or a small business aiming to expand your production capabilities, the TwoTrees TTS-20 Pro offers a powerful, user-friendly solution that promises to transform your engraving and cutting experience.

Specification:

Product Model: TwoTrees TTS-20 Pro

Laser Power:

  • Electric Power: 130W
  • Laser Output: 20W (real output, highest in its class)

Engraving Speed:

  • Maximum: 30000mm/min (500 mm/s)

Working Area:

  • Dimensions: 418mm x 418mm

Machine Size:

  • Dimensions: 695mm x 595mm x 125mm

Machine Weight:

  • Net: 3.2 kg
  • Gross (Package Weight): 9 kg

Laser Module:

  • Type: New generation COS chip for improved thermal management
  • Weight Reduction: 40% lighter than previous models

Assembly:

  • Pre-assembled: 98% pre-assembled, minimal setup required

Safety Features:

  • Eye Protection: Laser protective cover that filters 97% UV light
  • Limit Switch: Ensures safe and correct engraving operation

Additional Features:

  • Air Assist Pump: Included to improve engraving and cutting quality
  • Honeycomb Bench Table: Included for enhanced support and accuracy

Power Requirements:

  • Electrical Requirement: 24V, 4A DC
  • Power Type: USA/EU Plug (Optional)

Laser Wavelength: 450±5nm

Supported Software:

  • Windows: LASERGRBL
  • Common: Lightburn

Software Support Languages:

  • Supports 13 languages including English, Italian, French, German, Portuguese, Czech, Spanish, Russian, Polish

Supported File Formats:

  • NC, BMP, JPG, PNG, GCODE, etc.

Supported Materials:

  • Wood, Plastic, Paper, Leather, Sponge Paper, Alumina

Engraving Accuracy: 0.08mm

Engraving Methods:

  • USB Connect PC, TF Card (APP, Webpage control)

Working Environment:

  • Temperature: 5-40°C
  • Humidity: 20-60%RH
