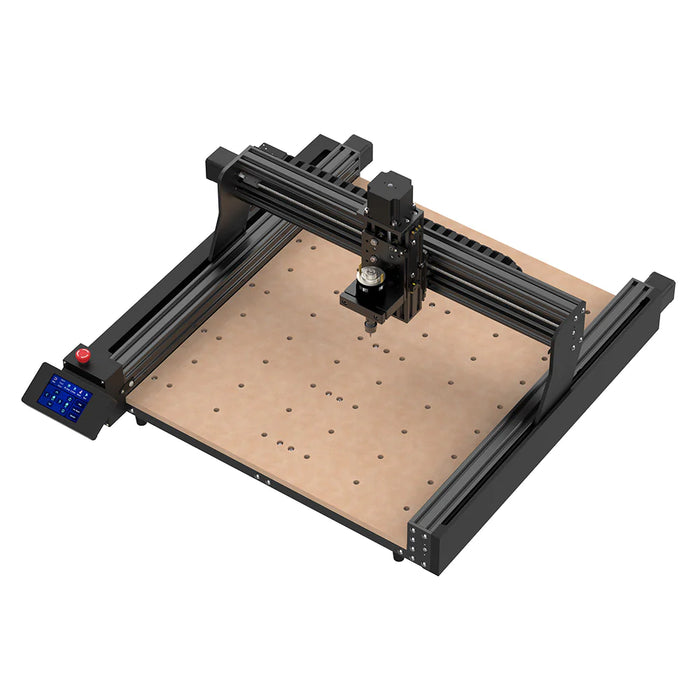

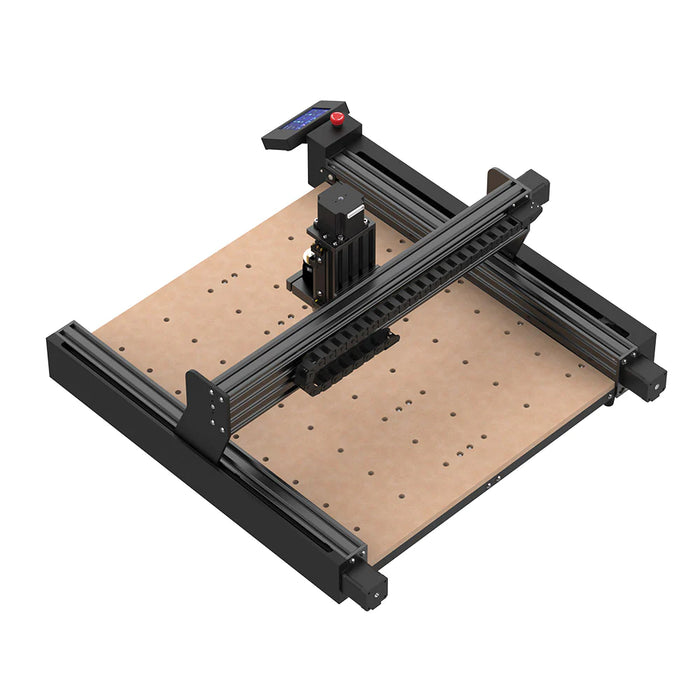

Explore the realm of precision crafting with the TwoTrees TTC450 CNC Laser Engraver, a powerhouse tool designed for a vast range of engraving and cutting tasks. With its substantial 460x460x80mm working area, this machine is ideal for commercial batch manufacturing as well as intricate artistic designs, enabling both 2D and 3D creations on a variety of materials including plastics, acrylic, metals, and more.
The TTC450 stands out with a high-speed spindle that can be upgraded from a standard 80W achieving 7000rpm to a 500W version reaching 12,000rpm, ensuring quiet operation with fast heat dissipation for smoother engraving results. It is constructed with a durable metal frame, equipped with high-quality screw rods for enhanced stability and precision, boasting an engraving accuracy of 0.01mm.
This model supports offline engraving through TF card and USB connections, compatible with popular software like LightBurn or LaserGRBL. The machine is 70% pre-assembled for easy setup, featuring an emergency stop switch for safety and supports a wide range of CAM software like Candle, Carveco, and Easel, making it a versatile and reliable choice for professionals and hobbyists alike.
Specification:
Model: TwoTrees TTC-450
Material Construction: Aluminum Profile + Plastic
Main Color: Black
Machine Size:
-
Overall Dimensions: 782 x 670 x 390 mm
-
Working Area: 460 x 460 x 80 mm
Machine Weight:
- Net: 19.2 kg
- Gross (Package Weight): 20 kg
Spindle Specifications:
-
Standard Spindle: 80W, 8000 RPM
-
Upgraded Spindle: 500W, 12000 RPM
Power Supply:
-
Voltage: 24V
-
Current: 5A
-
Power Adapter Power: 120W
Stepper Motor:
-
Type: NEMA 23
-
Current: 1.5A
-
Torque: 20mN.m
Engraving Accuracy: 0.01 mm
Engraving Speed Maximum: 800 mm/min
Limit Switch: X, Y, Z three-axis double limit + ESTOP
Control Board:
-
Type: ESP32 32-bit main control board
-
Features: Supports offline controllers, four axes, and PWM laser signals
Software Compatibility:
-
Supported Operating Systems: Windows XP, 7, 8, 10, OS
-
CAM Software Control: Candle
-
Programming: CarvecoMaker, Artcam, Easel
-
Supported Formats: NC, DXF, BMP, JPG, PNG, GCODE
Engraving Materials:
- Can engrave: MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminum, copper, carbon fiber board, etc.
- Cannot engrave: Metals requiring higher power, glass, stone
Additional Features:
-
Assembly: 70% pre-assembled
-
Engraving Method: USB connection, TF card
-
Linear Transmission Mode: Built-in POM wheel
-
Tool Setting: Software control
-
Emergency Stop Switch: Included
Working Environment:
-
Temperature: 5-40°C
-
Humidity: 20-60%RH
