Experience the thrill of crafting with the DIY CNC Engraving Machine, designed especially for DIY enthusiasts, students, and researchers. Equipped with professional GRBL control software, this machine offers an unmatched portable experience, combining engraving, carving, and milling functionalities into one versatile device.
Constructed from durable aluminum and plastic, and finished in sleek silver and black, the machine’s robust frame measures 420 x 355 x 280mm, providing a substantial working area of 300 x 180 x 40mm. It features a powerful 775 spindle motor operating at 24V for speeds up to 8000r/min, complemented by an ER11 spindle chuck. The step motor boasts a 1.5A current and 0.42N.m torque, ensuring precise movement and excellent engraving results on materials like wood, acrylic, PVC, and PCB.
This kit, which you assemble yourself, promises not just a tool, but an adventure in creation. It supports various operating systems including Windows XP, 7, 8, 10, and Linux, and connects via a Micro USB, making it both accessible and convenient for all users. Whether you're a seasoned engraver or just starting out, this CNC machine is your gateway to expanding your creative capabilities and exploring new crafting possibilities.
Specification:
Model: CNC 3018Pro
Material Construction: Aluminum Alloy + Phenolic Resin
Main Color: Black + Silver
Machine Size:
-
Frame Size: 420 x 355 x 280 mm
-
Working Area: 300 x 180 x 40 mm
-
Table-board Size: 300 x 180 mm
Machine Weight:
- Net: 7.1 kg
- Gross (Package Weight): Varies by package (6650g to 7000g)
Spindle:
-
Type: 775 Spindle Motor
-
Voltage: 24V
-
Speed: 8000 r/min
Spindle Chuck: ER11
Step Motor:
-
Current: 1.5A
-
Torque: 0.42 N.m
Power Supply:
-
Voltage: AC 100-240V Output 24V
-
Current: 5.6A
-
Plug Type: US / EU (Optional)
Supported Operating Systems:
- Windows XP, Win 7, Win 8, Win 10, Linux
Communication Port: Micro USB
Supported File Formats:
Engraving Materials:
- Can engrave: wood, bamboo, paper, plastics, leather, rubber, horn, sponge sheet, and other flammable plastics
- Cannot engrave: metals, glass, stone, ceramics, jewelry, silver, and other hard or reflective materials
Features:

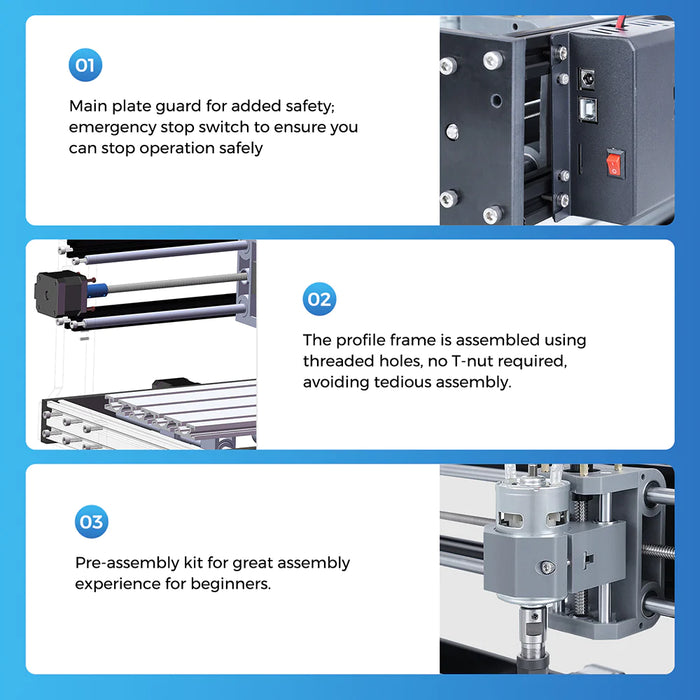

- 98% pre-assembled for easy setup
- Open source control system for DIY customization
- Includes professional English design software
- Features a laser protective cover for eye safety
- Comes with additional accessories like drill bits and an ER11 spindle chuck
Package Contents:
- 1 * DIY CNC Engraving Machine Kit
- 10 * Drill Bits
- 1 * ER11 Spindle Chuck
- Installation tools and user manual
