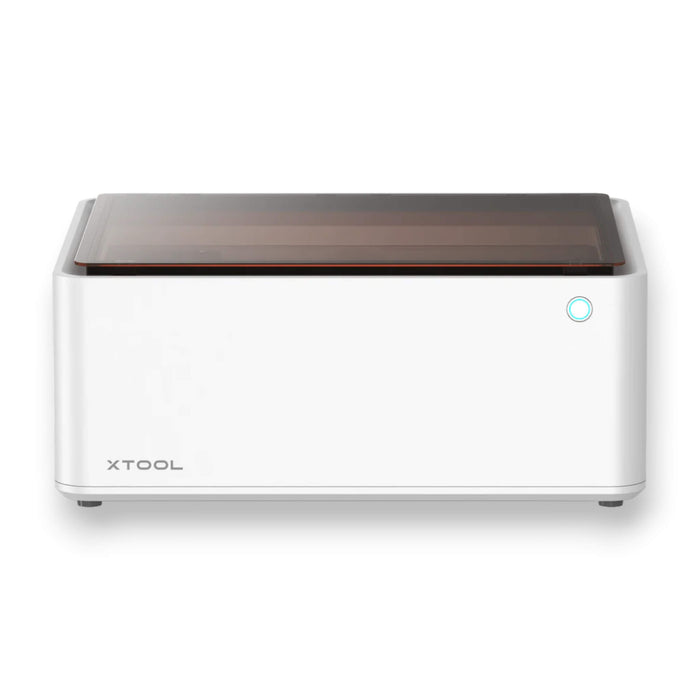

The xTool M1 stands at the forefront of crafting innovation, bringing the world's first combined Laser Engraver and Vinyl Cutter. Its dual functionality—powered by a 10W laser and precise blade—guarantees ultra-fine engravings and effortless vinyl cuts.
Enhancing operational ease, a built-in 16MP camera offers visualization and batch processing capabilities. The accompanying xTool Creative Space Software enriches crafters with an array of elements, fonts, and editable projects.
For the ambitious crafter, seamless adaptations to cylindrical or tall objects are possible with the RA2 Pro and Riser Base, broadening creative potential. Safety, a cornerstone of the xTool M1, ensures it is not just a craft tool but a home companion. Feedback from seasoned craftsmen and newcomers alike underscores its approachability and versatility. With the xTool M1, craftsmanship is as easy as 1-2-3.
2 In 1 Laser cutter and engraver
Easy 3 step operation
10w - 5w Comparison
| Specification |
xTool M1-10W |
xTool M1-5W |
| Laser output power |
10W |
5W |
| Light spot size |
0.08*0.08mm |
0.08*0.08mm |
| Security level |
Class I( FDA Certified) |
Class I( FDA Certified) |
| Maximum laser cutting capacity |
8mm Basswood board |
3mm Basswood board |
| Maximum cuttable material thickness |
≤ 1.5mm |
≤ 1.5mm |
| Maximum engraving speed |
250Mm/s (bitmap); 160mm/s (vector) |
250Mm/s (bitmap); 160mm/s (vector) |
| Working area |
385 300Mm (laser); 365 300mm (blade) |
385 300Mm (laser); 365 300mm (blade) |
| Engraving accuracy |
0.01mm |
0.01mm |
| Focus mode |
Auto focus |
Auto focus |
| Connection method |
Wi-Fi/USB |
Wi-Fi/USB |
| Operating system |
Windows/macOS/Android/iOS |
Windows/macOS/Android/iOS |
| Noise level |
<60dB |
<60dB |
| Weight of the whole machine |
9.8KG |
9.8KG |
| Machine size |
557453230mm |
557453230mm |
| Outer diameter of smoke exhaust pipe |
74mm |
74mm |
| Supported file formats |
SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| Power supply |
100~240V AC,50/60Hz |
100~240V AC,50/60Hz |
| Machine power |
121.5W |
84W |
