Complete Guide To Resin 3D Printing
May 12, 2023 bilal mahmood

Complete Guide To Resin 3D Printing

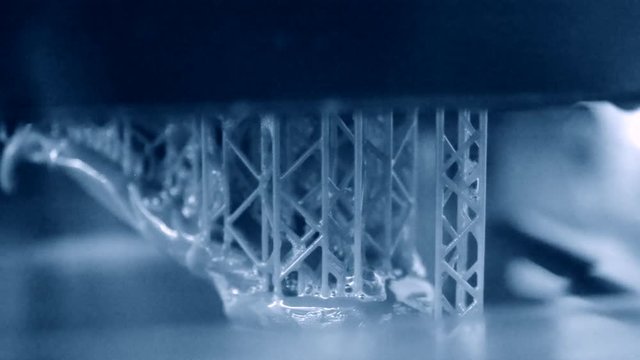

A Comprehensive Guide to Resin 3D Printing

Resin 3D printing, also known as Stereolithography (SLA) or Digital Light Processing (DLP), is a form of additive manufacturing technology that utilizes liquid resin as a printing material. This method involves the use of a light source—such as a laser or projector—to solidify and shape the resin layer by layer, creating a three-dimensional object. Unlike traditional 3D printing methods that deposit melted plastic layer by layer (Fused Deposition Modeling, or FDM), resin 3D printing offers superior resolution and a smoother finish, making it ideal for detailed and intricate designs.

Types of Resin 3D Printers

  • SLA (Stereolithography)

Stereolithography, also known as SLA, is one of the most common types of resin 3D printing. An SLA printer works by focusing an ultraviolet (UV) laser onto a vat of photopolymer resin. The laser traces a pre-programmed design onto the surface of the resin vat, which selectively hardens the resin layer by layer to form the 3D object. Once one layer is complete, the build platform moves up, and the process is repeated until the entire model is printed. SLA printers are known for their high resolution and precision, producing exceptionally smooth and detailed prints.

  • DLP (Digital Light Processing)

Digital Light Processing, or DLP, is another popular form of resin 3D printing. Instead of a UV laser, DLP printers use a digital light projector screen to flash an entire layer of the object onto the resin at once. This method allows for faster printing times compared to SLA. However, the resolution of the print is determined by the size of the pixels (voxels) projected by the light source. DLP printers are also capable of producing high-quality prints with smooth surfaces, although the level of detail may vary depending on the light source's resolution.

Comparison of SLA and DLP

While both SLA and DLP printers use light to cure resin and create 3D objects, there are some key differences between the two. SLA's point-by-point curing process allows for incredibly high-detail prints, but it can be slower than DLP, especially for larger, solid models. On the other hand, DLP's layer-by-layer curing process can be faster, particularly for larger models, but its resolution is limited by the projector's pixel size. Additionally, DLP printers may have a shorter lifespan due to the light source degradation over time. When choosing between SLA and DLP, consider your needs for speed, detail, and long-term maintenance.


Key Components of a Resin 3D Printer

  • Build Platform

The build platform, also known as the build plate, is a critical component of a resin 3D printer. It's the surface onto which your 3D model is built, layer by layer. The build platform moves up and down along the Z-axis as each layer of resin is cured. For successful prints, the build platform needs to be level and properly adjusted to ensure optimal adhesion of the model. The size of the build platform also determines the maximum size of the object you can print.

  • Resin Vat

The resin vat, or resin tank, holds the liquid photopolymer resin during the printing process. It's usually made of a transparent material, allowing the light source to pass through and selectively harden the resin. The bottom of the vat is typically a transparent, non-stick film or sheet that allows light to pass through while also enabling the cured resin to separate from the vat after each layer is formed. The resin vat requires careful handling and regular cleaning to avoid any contamination or damage that could affect print quality.

  • Light Source

The light source is the component that cures the resin. In SLA printers, the light source is typically a UV laser that selectively cures the resin point by point. In DLP printers, the light source is a digital projector that cures an entire layer of resin at once. The type and quality of the light source can significantly affect the resolution and precision of your prints.

  • Z-Axis

The Z-axis is the vertical axis in a 3D printer, responsible for the up and down movement of the build platform. Each time a layer of resin is cured, the build platform moves up along the Z-axis, allowing a new layer of liquid resin to be exposed for the next cycle of curing. Precise Z-axis movement is crucial for creating accurate, high-quality prints, as it determines the thickness of each layer and therefore the resolution of the final print.

Selecting a Resin 3D Printer

  • Price Range

The cost of resin 3D printers can vary greatly depending on their features, capabilities, and brand. Entry-level models can start from a few hundred dollars, while professional-grade machines can cost several thousand. It's important to establish a budget before you start shopping and remember to account for the ongoing costs of resin, replacement vats, and other consumables.

  • Build Volume

The build volume of a 3D printer determines the maximum size of the objects you can print. It's represented by the dimensions (width, depth, and height) of the build platform. If you plan on printing larger models, you'll need a printer with a larger build volume. However, larger printers are usually more expensive, so balance your size requirements with your budget constraints.

  • Resolution

Resolution refers to the level of detail a printer can produce and is usually measured in microns. The lower the number, the higher the resolution, meaning the printer can produce finer details. Resin 3D printers generally have a high resolution, making them suitable for detailed and intricate designs. However, higher resolution often comes with longer print times.

  • Connectivity Options

Different printers offer various connectivity options for loading your 3D models onto the printer. These can include USB ports, SD card slots, Wi-Fi, or Ethernet connections. Some printers may also offer their own proprietary software with cloud-based capabilities. Choose a printer with connectivity options that suit your workflow and environment.

Reliability and Customer Support

Reliability is a crucial factor to consider when purchasing a 3D printer. Read user reviews to get a sense of the printer's durability, reliability, and common issues. Additionally, consider the level of customer support provided by the manufacturer. Good customer support can be invaluable, especially when you're starting out. It can include detailed user manuals, online tutorials, responsive customer service, and an active user community for advice and troubleshooting tips.

Resin Materials

  • Standard Resins

Standard resins are the most commonly used materials in resin 3D printing. They are suitable for a broad range of applications and are known for their ease of use, affordability, and good print quality. Standard resins can produce prints with high detail and smooth surfaces, making them ideal for prototyping, art, and hobby projects. They are available in a variety of colors.

  • Specialty Resins

In addition to standard resins, there are also a variety of specialty resins designed for specific applications. These include:

   - Tough Resins: These are designed to produce parts that are durable and able to withstand high stress or strain.

   - Flexible Resins: These produce parts that can bend and compress, similar to rubber.

   - Castable Resins: These burn out cleanly with no residue, making them perfect for jewelry making and other casting applications.

   - Dental and Medical Resins: These are biocompatible materials designed for dental and medical applications.

   - High-Temperature Resins: These can withstand high temperatures, making them ideal for molding and casting processes.


Remember that specialty resins often come at a higher cost than standard resins and may require specific handling and post-processing steps.

Safety and Handling Precautions

Resin is a chemical substance that can be harmful if not handled correctly. Here are some safety guidelines:

   - Always wear gloves when handling resin to prevent skin contact.

   - Use a respirator or work in a well-ventilated area to avoid inhaling fumes.

   - Avoid eye contact with resin. Always wear safety glasses when handling or cleaning up spills.

   - Follow the manufacturer's instructions for curing and disposing of used resin.

   - If you get resin on your skin, wash it off immediately with soap and water.

   - Keep resin out of reach of children and pets.

Always read and follow the safety data sheet (SDS) provided by the resin manufacturer.

  1. Printing Workflow
  2. Preparing a 3D model
  3. Slicing software
  4. Printer setup
  5. Post-processing

Troubleshooting Common Issues

  • Print Adhesion Problems

Print adhesion problems are common in resin 3D printing. If your prints are not sticking to the build platform, try the following solutions:
   - Level the build plate: An uneven build plate can lead to adhesion problems. Refer to your printer's manual on how to properly level the build plate.
   - Adjust the Z-offset: The Z-offset controls the distance between the build plate and the bottom of the resin vat. If the distance is too great, the print may not adhere correctly.
   - Increase the bottom layer exposure time: Increasing the exposure time for the first few layers can help improve adhesion to the build plate.
   - Clean the build plate: Resin or other residues on the build plate can interfere with adhesion. Clean the build plate with isopropyl alcohol (IPA) and a lint-free cloth.

  • Incomplete Prints

Incomplete prints can occur due to several reasons:
   - Insufficient resin in the vat: Ensure that there is enough resin in the vat for the entire print.
   - Incorrect print settings: Check your slicer settings. Ensure that the layer height, exposure time, and lift speed are set correctly for the resin you're using.
   - Damaged or dirty vat: If the transparent bottom of the vat is scratched, cloudy, or dirty, it can block the light source, preventing parts of the print from curing. Clean the vat or replace it if necessary.

  • Layer Lines and Artifacts


Layer lines and artifacts can detract from the quality of your print:
 - Layer lines: These are typically a result of the layer height setting in your slicer software. Decreasing the layer height will result in thinner layers and smoother prints but will increase print time.
 - Artifacts: These can be caused by various issues, such as incorrect exposure settings, printer vibrations, or issues with the 3D model itself. Check the model for errors, ensure the printer is on a stable surface, and adjust your slicer settings as necessary.
Remember that troubleshooting is often a process of trial and error. What works for one problem may not work for another, so patience and persistence are key.

Tips and Tricks for Successful Resin 3D Printing

  • Proper Leveling

Ensuring your build platform is properly leveled is critical for successful resin 3D printing. An uneven platform can lead to print adhesion problems, incomplete prints, or prints with uneven bases. Most resin printers have a built-in process for leveling the build plate—refer to your printer's manual for detailed instructions. It's a good idea to check the level of your build plate regularly, especially if you're experiencing persistent print failures.

  • Optimal Print Orientation

The orientation of your model on the build plate can significantly affect the success of your print. Certain orientations can reduce the likelihood of print failures, improve the quality of the print, and reduce the need for support structures. As a rule of thumb, it's often best to angle your model slightly instead of printing it directly on its base. This helps reduce the suction forces that can lead to print failures or damage to the resin vat. Using a slicer software with good support generation features can help you determine the optimal orientation for your model.

  • Resin Management

Proper resin management can extend the lifespan of your resin and your resin vat, and also improve the quality of your prints. Here are a few tips:
   - Mix your resin: Before each print, stir the resin in the vat to ensure any settled pigments are evenly distributed. Use a plastic or silicone spatula to avoid damaging the vat.
   - Keep it clean: After each print, clean any uncured resin off the build plate and the vat. Strain the leftover resin through a fine-mesh filter before returning it to the bottle to remove any cured bits.
   - Protect from light: Store your resin in a cool, dark place as exposure to light can cause it to cure prematurely.
   - Regular vat maintenance: Clean your vat regularly and replace the FEP film when it becomes scratched or cloudy. This ensures the light can pass through it clearly, leading to better prints.

Community and Resources

  • Online Forums

Online forums are a great place to connect with other resin 3D printing enthusiasts. They offer a platform to ask questions, share experiences, learn from others, and stay up-to-date with the latest news and developments. Some popular forums include the 3D printing subreddits on Reddit (such as r/3Dprinting and r/resinprinting), the 3D Hubs Talk forum, and the RepRap forums.

  • Video Tutorials

Video tutorials are an excellent resource for visual learners. You can find a wealth of video content on YouTube covering everything from the basics of resin 3D printing to more advanced techniques. Some manufacturers also provide official video guides for their specific printers.

  • Blogs and Articles

Numerous 3D printing blogs and articles offer in-depth information on various aspects of resin 3D printing. Websites like All3DP, 3D Printing Industry, and 3DPrint.com regularly publish guides, reviews, and news articles related to 3D printing. Manufacturers' blogs can also be a valuable resource for tips and tutorials specifically tailored to their products.



Conclusion

In this guide, we've covered the basics of resin 3D printing, including an introduction to the technology, the key components of a resin 3D printer, how to select a printer, the types of resins available, and how to troubleshoot common issues. We've also shared some tips and tricks for successful printing, and pointed you towards resources where you can learn more and connect with the community.

Resin 3D printing is a powerful technology that opens up a world of possibilities for creators, hobbyists, and professionals alike. While it can seem complex at first, with time and practice, you'll be able to create high-quality, detailed prints with ease. Don't be afraid to experiment, make mistakes, and ask for help when you need it. The 3D printing community is full of passionate and knowledgeable people who are always willing to share their experiences. So dive in, start printing, and see where your creativity takes you!
